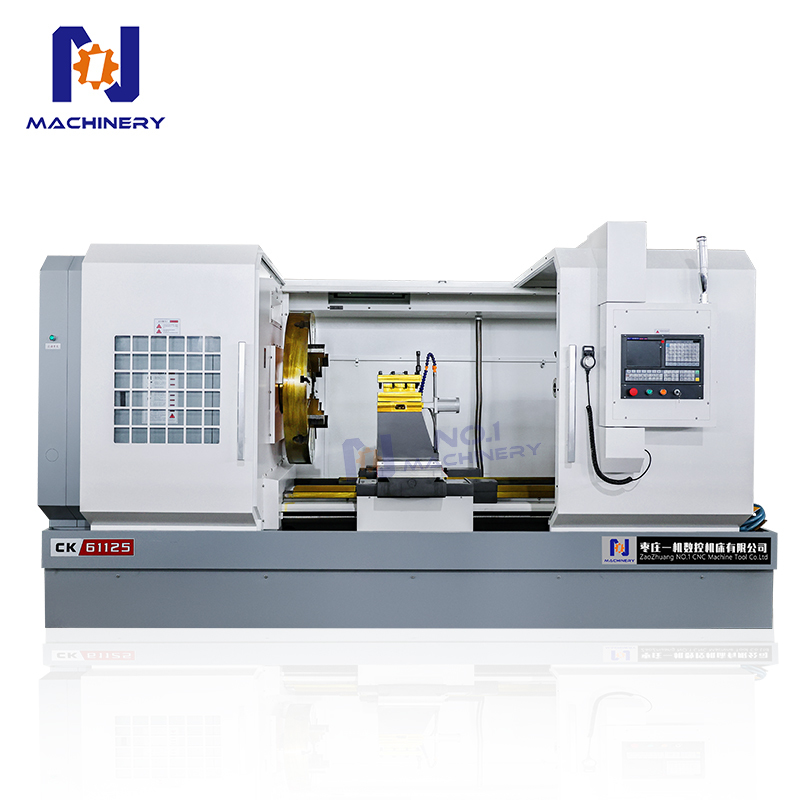

CK61125 Flat Bed Large Torno CNC Automatic Lathe Heavy Duty For Metal

Name: CK61125 Flat Bed Large Torno CNC Automatic Lathe Heavy Duty For Metal
Brand: Zaozhuang NO.1
Price: 21000 USD

Quality CK61125 Flat Bed Large Torno CNC Automatic Lathe Heavy Duty For Metal for sale

Brand Name : Zaozhuang NO.1

Model Number : CK61125

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 21000USD

Payment Terms : T/T

Supply Ability : 100 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Max. swing over bed : 1250mm

Max. swing over cross slide : 880mm

Max. processing length : 1000-5000mm

Spindle bore : Φ130

Spindle motor : 15kw

Taper of tailstock sleeve : MT6

Spindle end form : A2-15

Contact Now

Ck61125 Flat Bed Large Torno CNC Heavy Duty CNC Lathe Machine for Metal

Product Description:

The lathe has high power, strong rigidity and wide speed range of spindle. lt issuitable for strong or high speed cutting. lt can turn end face, outer circle, innerhole, metric, inch, module and pitch threads, and can undertake drilling,casing, boring and other processes.

Standard Configuration:

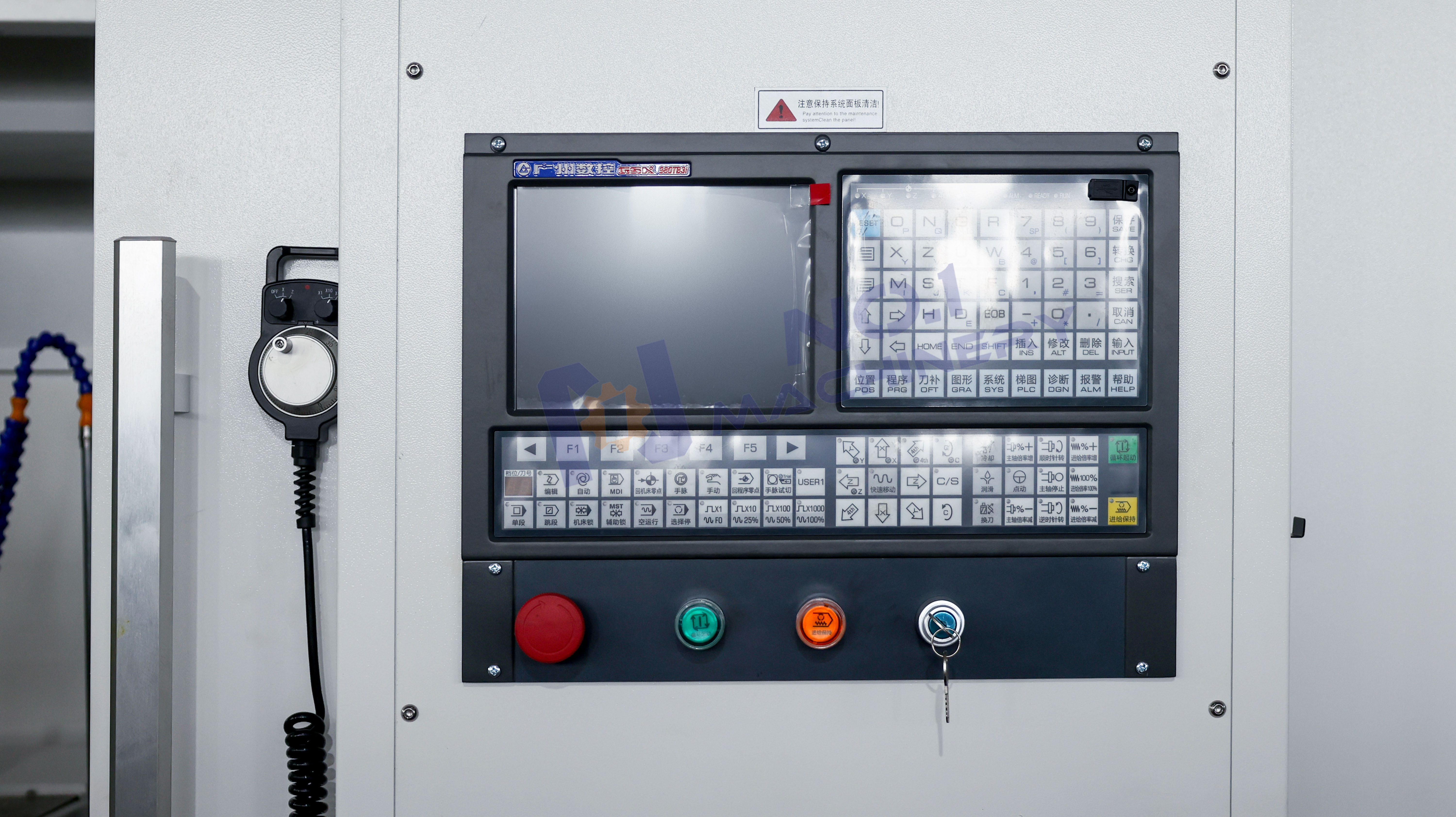

1. GSK 980 TDC

2. Spindle Unit A2-11/15/through hole 105/130

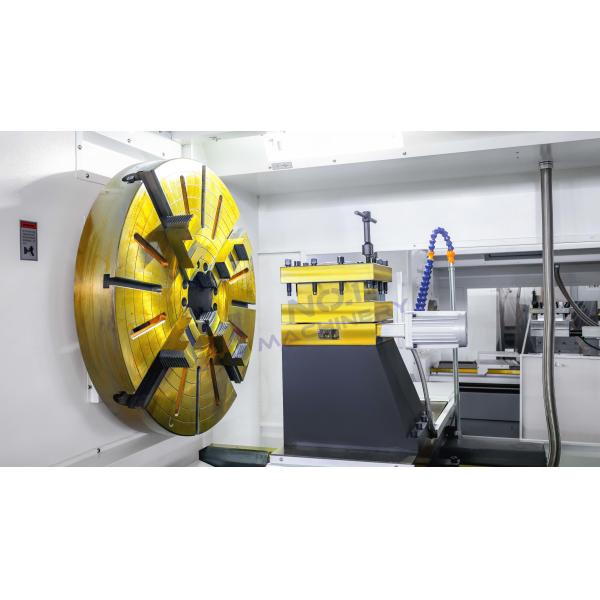

3. 500mm 3-jaws/800mm 4-jaws

4.The main spindle gear box 4 gears

5. 4-station tool holder

6. Bed guide width 600/755/1100mm

Optional Configuration:
8 station electric knife tower
500mm hydraulic Chuck/hydraulicTailstock
System: STNTEC, Mitsubishi, Siemens, FANUC
Spindle through hole 130
Optional length: 1/1.5/2/3/4/5m

Product Specification:

Item Model	Unit	CK61100	CK61125
Maximum turning diameter of bed	mm	1000	1250
Maximum diameter of rotation on skateboard	mm	630	880
Maximum workpiece length	mm	1000-5000	1000-5000
Width of guide rail	mm	600/755	600/755/1100
Spindle hole	mm	105	130
Spindle end form	-	A2-11	A2-15
Spindle speed series		Manual/hydraulic 4-speed	4-speed
Spindle speed range	rpm	30-84/53-150/125-350/300-835	835
Type of tool holder	-	Vertical 4-station tool holder	Vertical 4-station tool holder
Tool dimensions	mm	32X40	40x40
X/ZAxis stroke	mm	550/1000-5000	640/1000-5000
X/Z axis fast feed speed	mm/min	6000/4000	0008/0009
Diameter of tailstock sleeve	mm	100	130
Taper of tailstock sleeve	-	MT6	MT6
Tail seat sleeve stroke	mm	250	250
Main motor power	kw	11	15
Cooling motor power	kw	0.0125	0.125
Weight of machine tool	kg	4300-6500	6000
External dimensions	mm	3400-5400X1950X200	6700X2550X2350

Product Display:

CK61125 Flat Bed Large Torno CNC Automatic Lathe Heavy Duty For Metal
