Z3063 Heavy Duty Radial Drilling Machine 63mm 380V Motor Gear Pump Bearing Gearbox

Name: Z3063 Heavy Duty Radial Drilling Machine 63mm 380V Motor Gear Pump Bearing Gearbox
Brand: Zaozhuang NO.1
Price: 7000 USD

Quality Z3063 Heavy Duty Radial Drilling Machine 63mm 380V Motor Gear Pump Bearing Gearbox for sale

Brand Name : Zaozhuang NO.1

Model Number : Z3063

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 7000USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Maximum bore diameter(mm） : 63

Distance from spindle face to base face（mm） : 450-2000

Column diameter（mm） : 400

Spindle stroke（mm） : 400

Spindle taper hole (Morse) : MT5

Spindle speed range（rpm） : 25-1600

Size of worktable（mm） : 800x630x500

Contact Now

Z3063 Heavy Duty Radial Drilling Machine 63mm 380V Motor Gear Pump Bearing Gearbox

The Z3063 Radial Drilling Machine is a highly versatile hole-making equipment. Its arm rotates around the column and the head moves along the arm, facilitating multi-hole machining of large workpieces. It offers flexible operation, powerful performance, and is suitable for drilling, reaming, boring, and counterboring with reliable stability.

Standard configuration:

1. hydraulic transmission

2. Hydraulic pre - selection

3.hydraulic clamping

4.mechanical and electrical double insurance

5.hydraulic change speed

Product specification:

PARAMETER ITEM	Unit	Z3063x20
Maximum bore diameter	mm	63
Distance from spindle face to base face	mm	450-2000
Distance from spindle center line to column busbar	mm	400-1600
Column diameter	mm	400
Spindle stroke	mm	400
Spindle taper hole (Morse)	-	MT5
Spindle speed range	rpm	25-1600
Spindle speed series	step	16
Spindle feed range	mm/r	0.04-3.20
Spindle feed series	step	16
Size of worktable	mm	800x630x500
Spindle box horizontal movement distance	mm	1550
Spindle motor power	kw	5.5
Weight of the whole machine	kg	7000
External dimensions	mm	3080x1250x3205

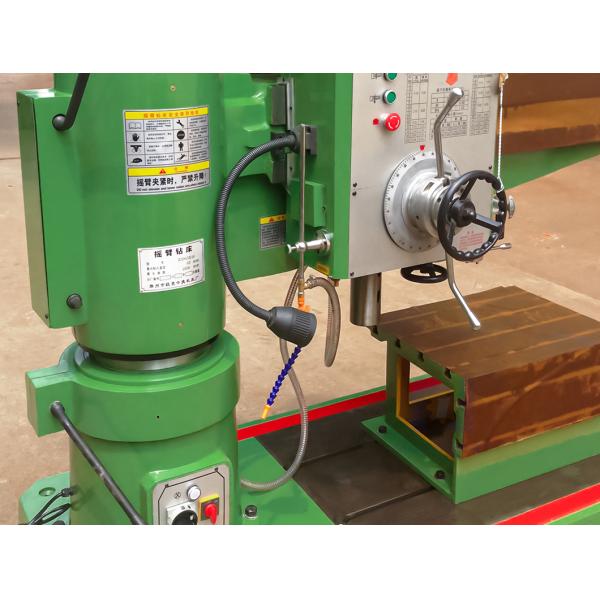

Details Display:

Z3063 Heavy Duty Radial Drilling Machine 63mm 380V Motor Gear Pump Bearing Gearbox
